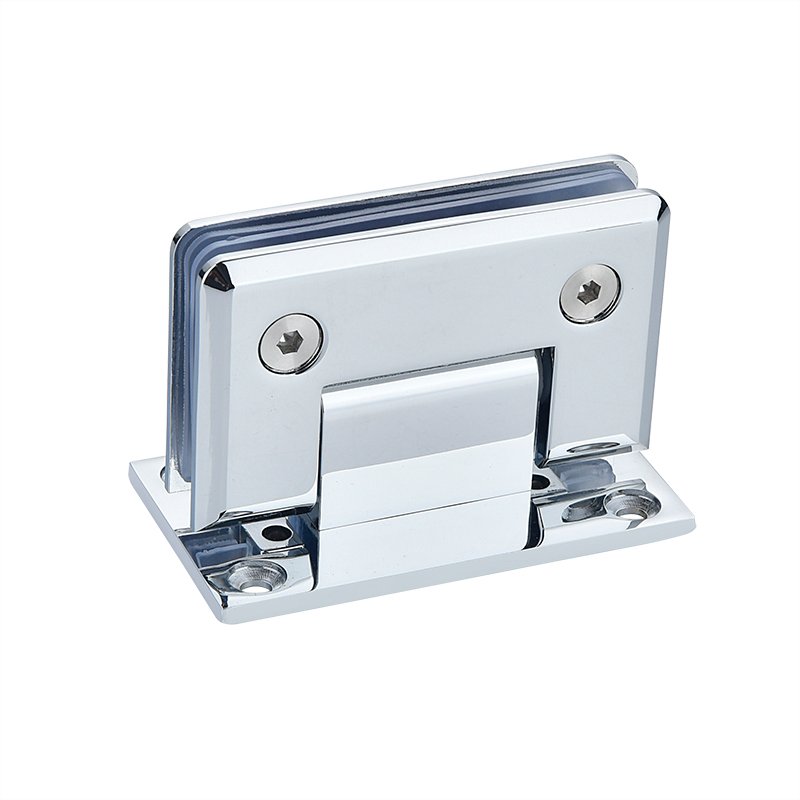

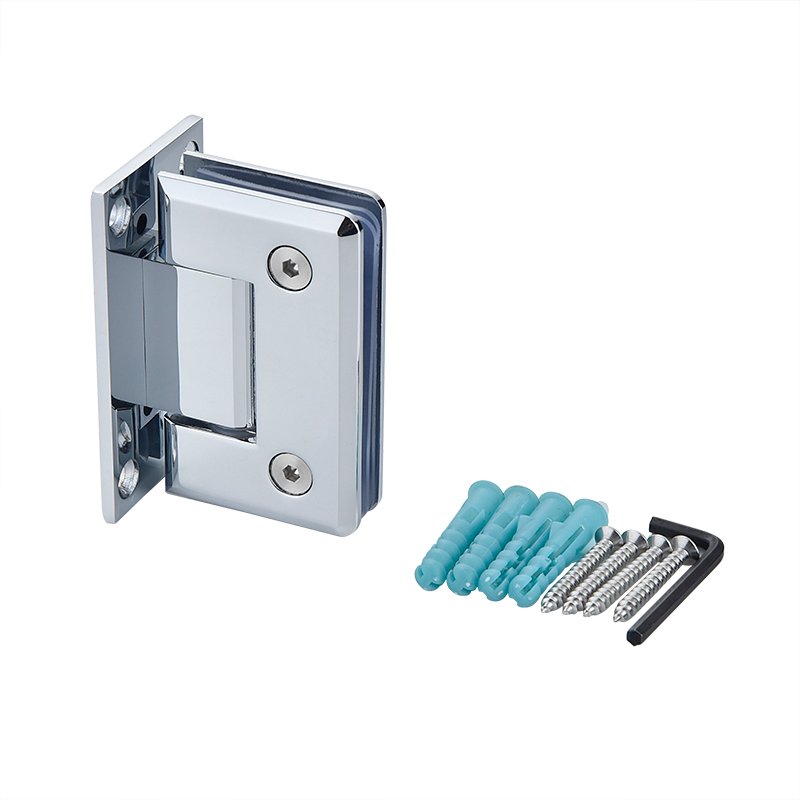

Glass shower door hinge 90 degree glass hinge bevel with recessed full back panel C-016
This 90-degree wall-to-glass hinge features four beveled corners, 90*55mm dimensions, a 58mm hole spacing, and anti-slip screws. The spacer between the clips can be PVC or asbestos, depending on the glass. Available materials include 304 stainless steel, 201 stainless steel, copper, or zinc alloy. The stainless steel is precision-cast, 5mm thick. It can also be welded to 4mm or 5mm thickness. It is spring-loaded and automatically closes when the door is closed to a 25° angle.
product details
Suitable for glass doors 800-1000 mm wide and 8-12 mm thick. Doors automatically close at approximately 25°.
Thickness: 8-12 mm glass doors.
Note: Glass must be tempered.
Load capacity: 40 kg per pair.
Materials: Brass, stainless steel, zinc alloy.
Finishes: Satin nickel, chrome plating, matte black, gold, rose gold, electrophoretic black, etc. We typically use spray coating, electroplating, PVD, and other surface treatments.
Selection of high quality materials,through strict production process control and quality inspection.Thick and durable without deformation.It is made of high quality stainless steel,solid core,and high quality spring,ensuring that 500000 times switch will not be damaged.Solid casting,strong and durable,thickened steel plate resistant to fracture,equipped with anti-rebound screw.Strong load-bearing strength,strong and durable,longer use time It is suitable for frame-less glass doors in shower room,bathroom,office and shopping mall.
