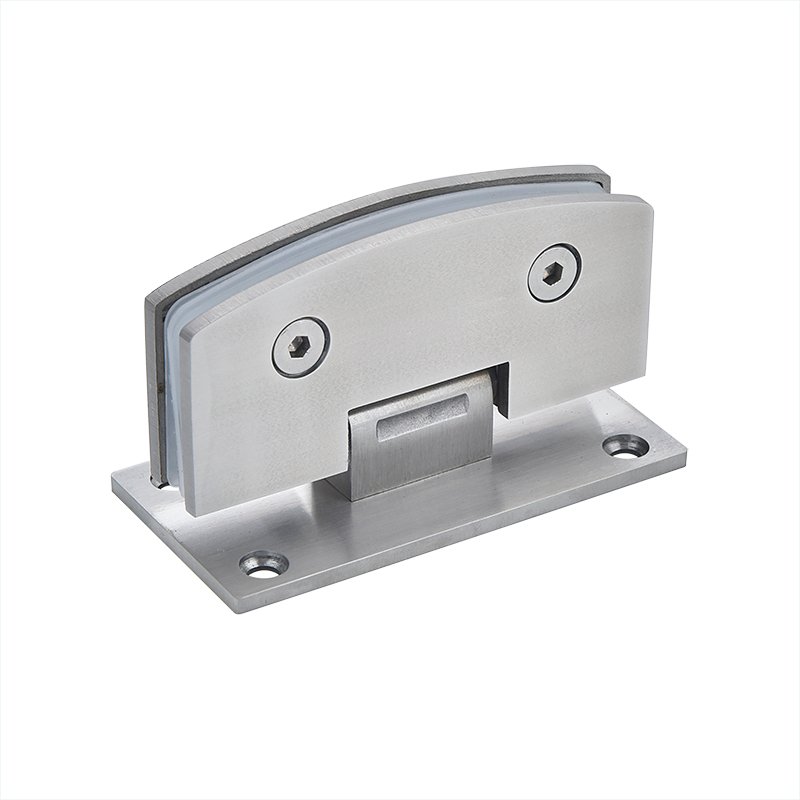

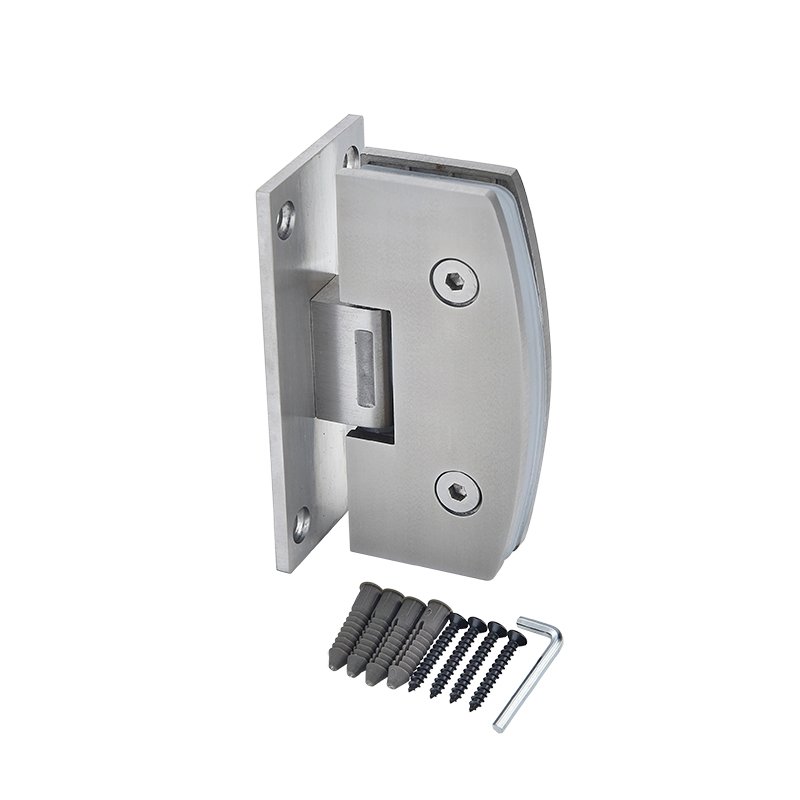

Shower door hinge glass accessories 90 degree glass hinge with embedded full back panel, curved C-046
This 90-degree wall-to-glass hinge features curved corners and anti-slip screws. The spacer between the clips can be PVC or asbestos, depending on the glass. Made of half cast and half stamped stainless steel, this semi-cast shower door hinge is 4mm thick. It’s spring-loaded and automatically closes when the door is closed to a 25-degree angle.
product details
Suitable for glass doors 800-1000 mm wide and 8-12 mm thick. Doors automatically close at approximately 25°.
Thickness: 8-12 mm glass doors.
Note: Glass must be tempered.
Load capacity: 40 kg per pair.
Materials: Brass, stainless steel, zinc alloy.
Finishes: Satin nickel, chrome plating, matte black, gold, rose gold, electrophoretic black, etc. We typically use spray coating, electroplating, PVD, and other surface treatments.
Selection of high quality materials,through strict production process control and quality inspection.Thick and durable without deformation.It is made of high quality stainless steel,solid core,and high quality spring,ensuring that 500000 times switch will not be damaged.Solid casting,strong and durable,thickened steel plate resistant to fracture,equipped with anti-rebound screw.Strong load-bearing strength,strong and durable,longer use time It is suitable for frame-less glass doors in shower room,bathroom,office and shopping mall.
