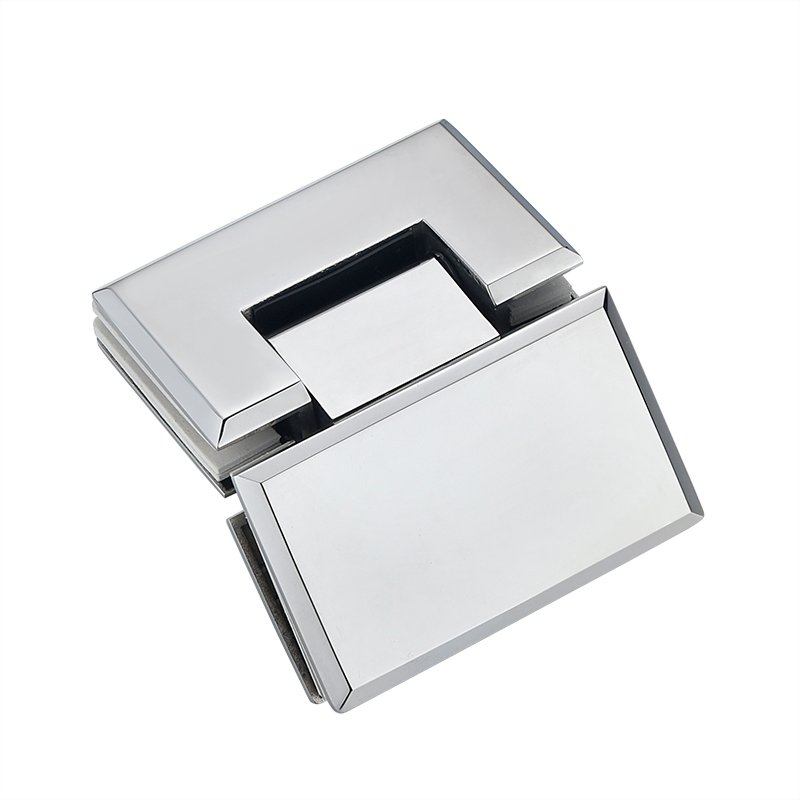

Shower door hinges glass hinges 135 degree glass to glass bevel and rounded corners C-017

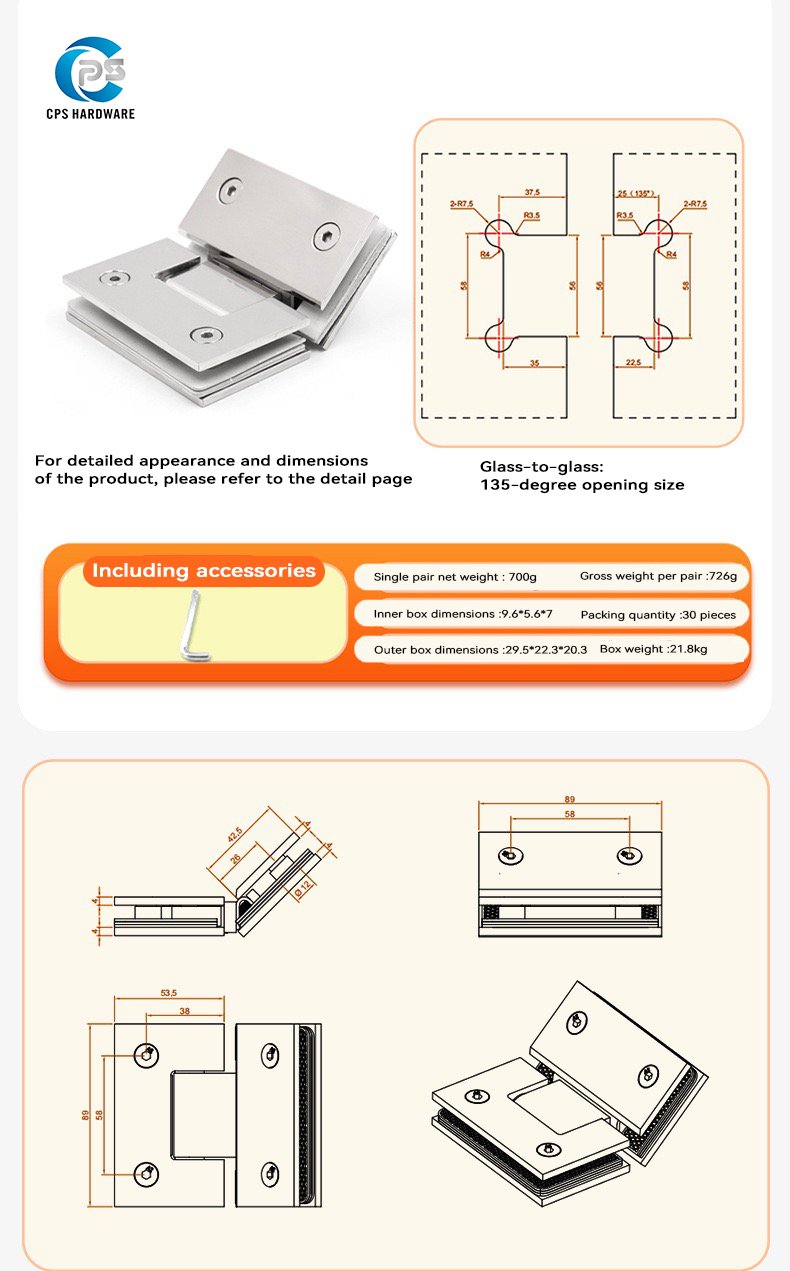

This hinge features a 135-degree glass hinge with four beveled corners and measures 90 x 55 mm. Its stylish diamond-like appearance is available in 304 stainless steel, 201 stainless steel, copper, or zinc alloy. The hinge is available in either precision casting or welded versions. The precision casting is 5 mm thick, while the welded version is 4 mm or 5 mm thick. It features a springy design that automatically closes when the door is closed to a 25-degree angle. Our factory-produced bathroom clamps open and close smoothly and silently.
product details
Suitable for glass doors 800-1000 mm wide and 8-12 mm thick. Doors automatically close at approximately 25°.
Thickness: 8-12 mm glass doors.
Note: Glass must be tempered.
Load capacity: 40 kg per pair.
Materials: Brass, stainless steel, zinc alloy.
Finishes: Satin nickel, chrome plating, matte black, gold, rose gold, electrophoretic black, etc. We typically use spray coating, electroplating, PVD, and other surface treatments.
Selection of high quality materials,through strict production process control and quality inspection.Thick and durable without deformation.It is made of high quality stainless steel,solid core,and high quality spring,ensuring that 500000 times switch will not be damaged.Solid casting,strong and durable,thickened steel plate resistant to fracture,equipped with anti-rebound screw.Strong load-bearing strength,strong and durable,longer use time It is suitable for frame-less glass doors in shower room,bathroom,office and shopping mall.
